Viair 25058 IG Series 12V Portable Air Compressor Kit - Heavy Duty for Truck, SUV & Off-Road Vehicles - Fast Tire Inflation & Emergency Use

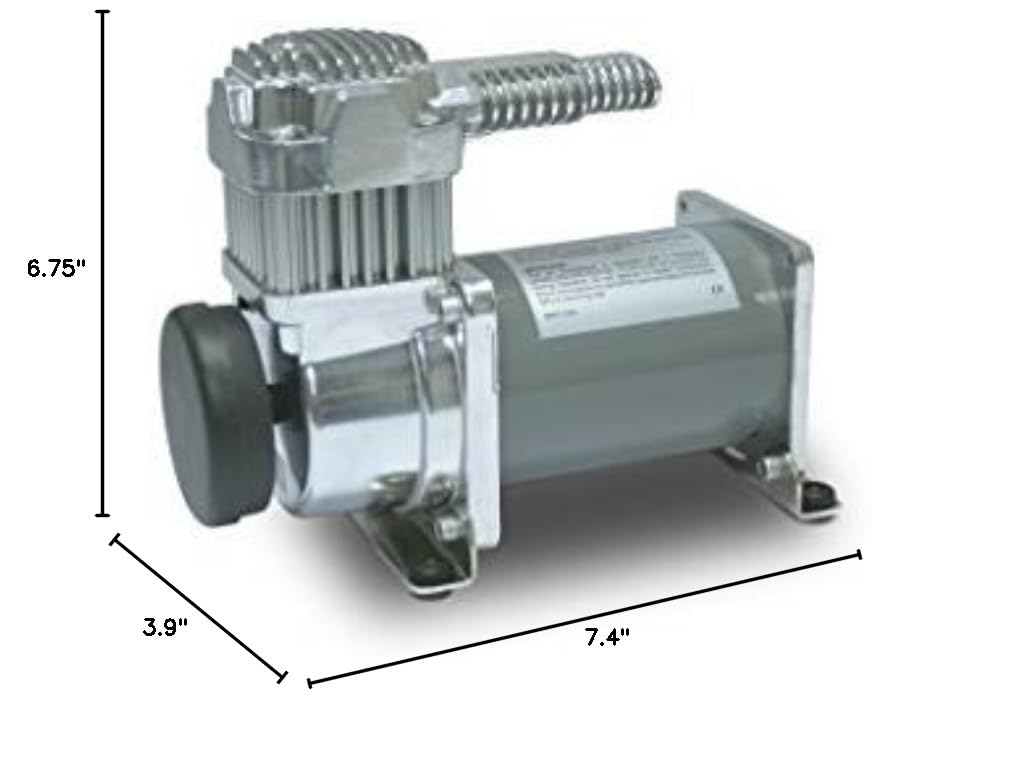

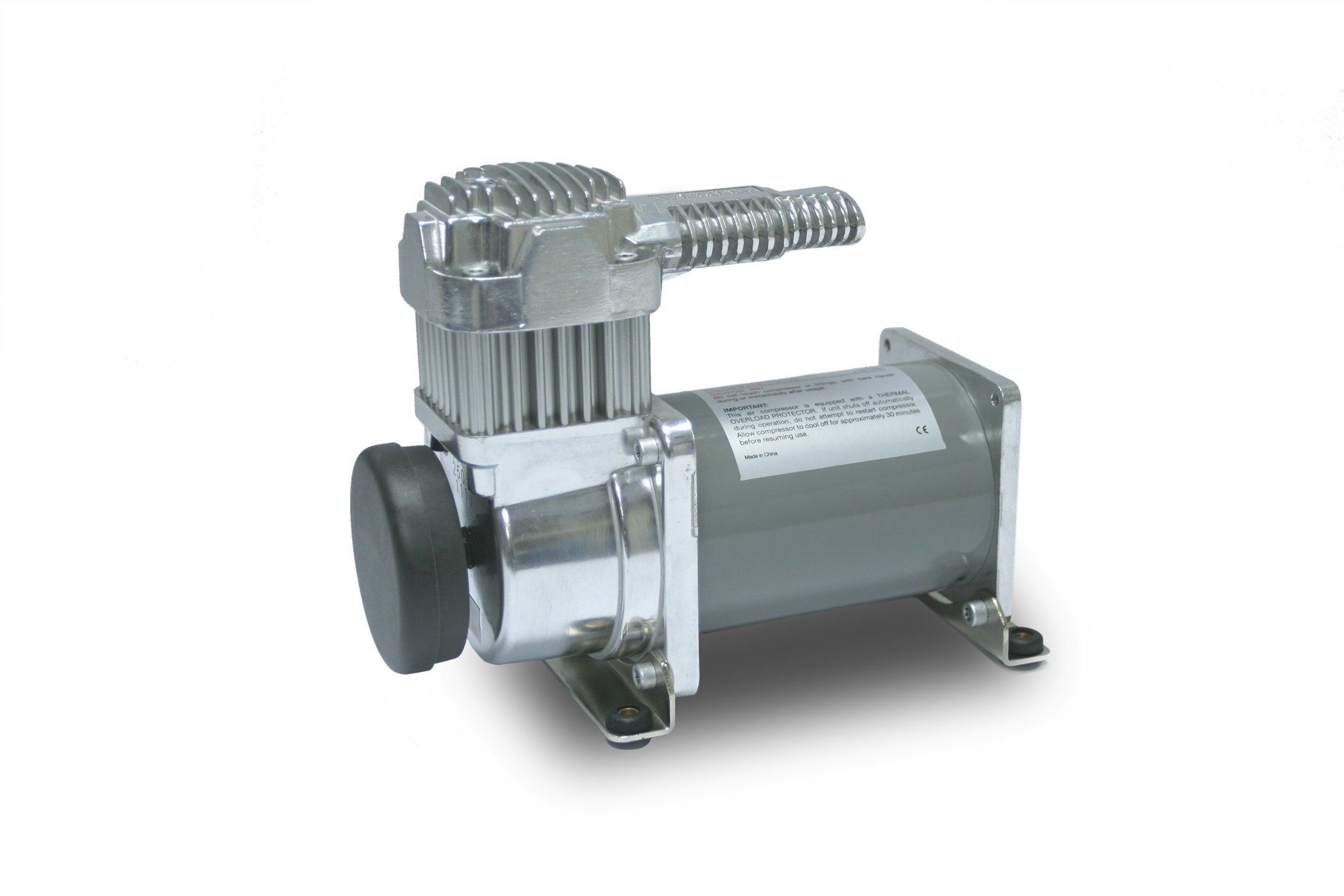

Industrial Grade (IG) compressors feature an innovative patents pending head design for better heat dissipation and are specifically designed to fill reservoir tanks. All IG compressors are certified CE spec. and feature outstanding sealing properties against the elements. Additionally, all IG compressors are equipped with a separate stainless steel braided PTFE-lined leader hose and check valve assembly that protects the compressor against high amperage restarts. This unit is oil-less and is rated at 28.0 volts to a charging car battery. FEATURES – Vibration Isolators – Mounting Hardware – Heavy Duty 1/4″ NPT Check Valve – Stainless Steel Braided PTFE-Lined Leader Hose – Air Line for Remote Mount Air Filter – Remote Mount Air Filter Assembly – (2) Replacement Air Filter Elements – Installation Instructions SPECIFICATIONS 24-Volt – Permanent Magnetic Motor – Duty Cycle: 100% @ 100 PSI – Max. Working Pressure: 150 PSI – Max. Air Tank Size: 2.5 Gallon – Max. 24V Amp Draw: 6 Amps – Ingress Protection Rating: IP67 – Max. Ambient Temp: +158°F – Min. Ambient Temp: -40°F – Dimensions: 7.4″L x 3.9″W x 6.75″H – Net Weight: 6.75 lbs. PERFORMANCE DATA 24-Volt Compressor PSI CFM A BAR LPM A 0 1.00 3 0 28.3 3 10 0.88 3 1.0 24.4 3 20 0.84 4 2.0 22.2 4 30 0.78 4 3.0 19.7 4 40 0.71 4 4.0 17.7 5 50 0.67 5 5.0 16.1 5 60 0.61 5 6.0 14.6 5 70 0.58 5 7.0 13.2 6 80 0.54 5 8.0 11.7 5 90 0.51 5 9.0 10.3 5 100 0.47 6 10.0 8.8 5 110 0.44 6    120 0.40 6    130 0.36 5    140 0.33 5    150 0.29 5    FILL RATES 24-Volt Compressor 1.0 Gallon Tank Fill Rate 0 to 105 PSI 1 min. 45 sec. (± 10 sec.) 85 to 105 PSI 26 sec. (± 05 sec.) 0 to 145 PSI 2 min. 45 sec. (± 10 sec.) 110 to 145 PSI 55 sec. (± 10 sec.) 2.5 Gallon Tank Fill Rate 0 to 105 PSI 4 min. 15 sec. (± 10 sec.) 85 to 105 PSI 1 min. 00 sec. (± 05 sec.) 0 to 145 PSI 7 min. 00 sec. (± 15 sec.) 110 to 145 PSI 2 min. 15 sec. (± 10 sec.)
