High-Quality Weld-In Hub and Spindle Kit for Heavy-Duty Trucks & Trailers - Perfect for Axle Repair & Off-Road Vehicle Maintenance
Free shipping on all orders over $50
7-15 days international
17 people viewing this product right now!
30-day free returns
Secure checkout
64072603
Description

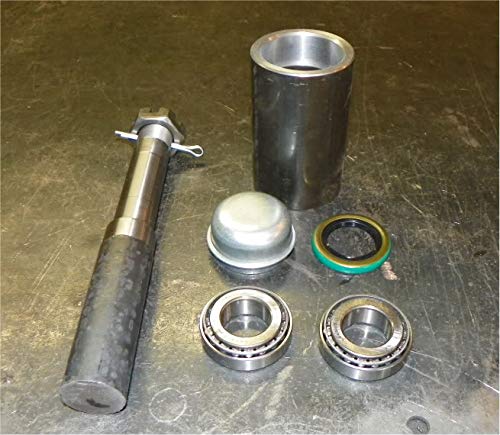

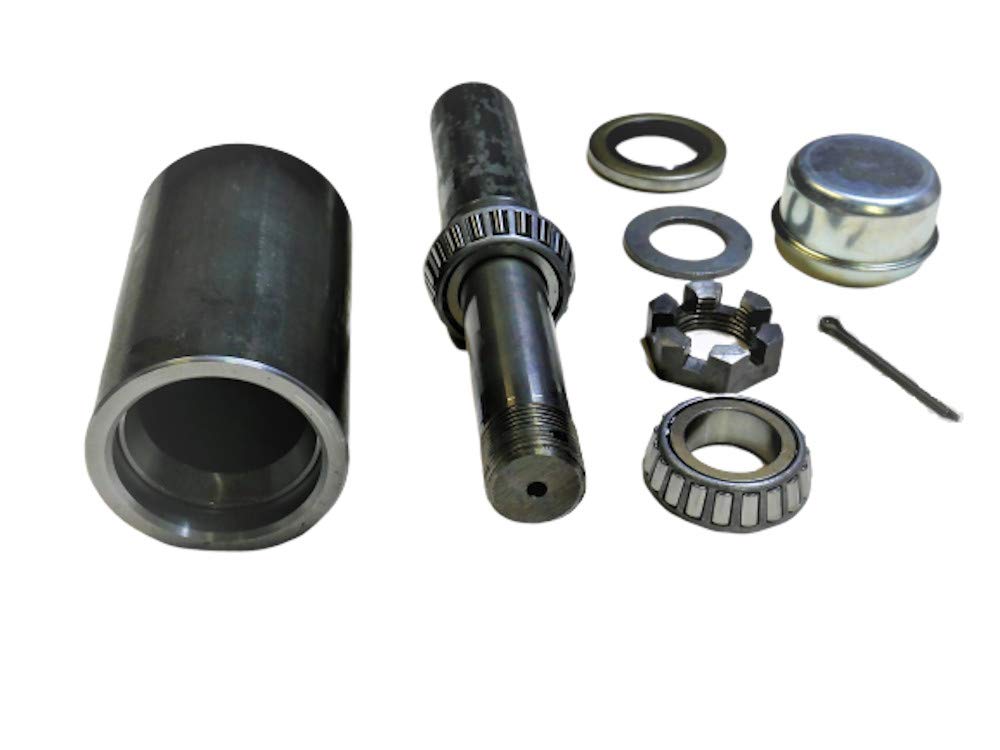

Hub and weld in spindle kit includes a 1000 lb trailer spindle, heavy duty hub, tapered roller bearings and races, a seal, nut, grease zerk and cotter pin.Kit is designed to be used as a pivot point for tire carrier builds on Jeeps or other vehicles but we have also seen them used in other applications where a heavy duty pivot is needed. The hub is 4" tall with an outside diameter of 2.5" and a 3/8" wall between the bearing races. The spindle is 8.25" tall overall, with the bottom portion being 1.25" in diameter and 3.37" long. Items returned after 30 days are subject to 20% restocking fee.
Features
HEAVY DUTY SPINDLE- 8.5 Inch Tall 1.25" OD at the Base Weld-in Trailer Spindle Rated for 1000 LBs
HEAVY DUTY HUB - 2.5 Inch Outside Diameter, 4 Inch Long Hub, with a 3/8 Inch Thick Wall Between Areas CNC Machined for Tappered Roller Bearings
INCLUDES - Spindle, Hub, Two Bearings and Races, Seal, Dust Cap, Grease Zerk, Nut and Cotter Pin
MULTIPLE USES - Often Used in Tire Carriers, We Have Also Seen These Used in Rotating Weld Fixtures, Lifting Devices, and Other Designs Where a High Strength Rotating Hub on Spindle Is Required
AMERICAN MADE PRODUCT - VETERAN OWNED BUSINESS
