100cc Bicycle Engine Kit - 2 Stroke & 4-Stroke Gas Motor Conversion Kit for Bikes with Large Frame Space | DIY Bike Motorization for Commuting, Off-Road & Urban Transportation
Free shipping on all orders over $50
7-15 days international
29 people viewing this product right now!
30-day free returns
Secure checkout
49453517
Description

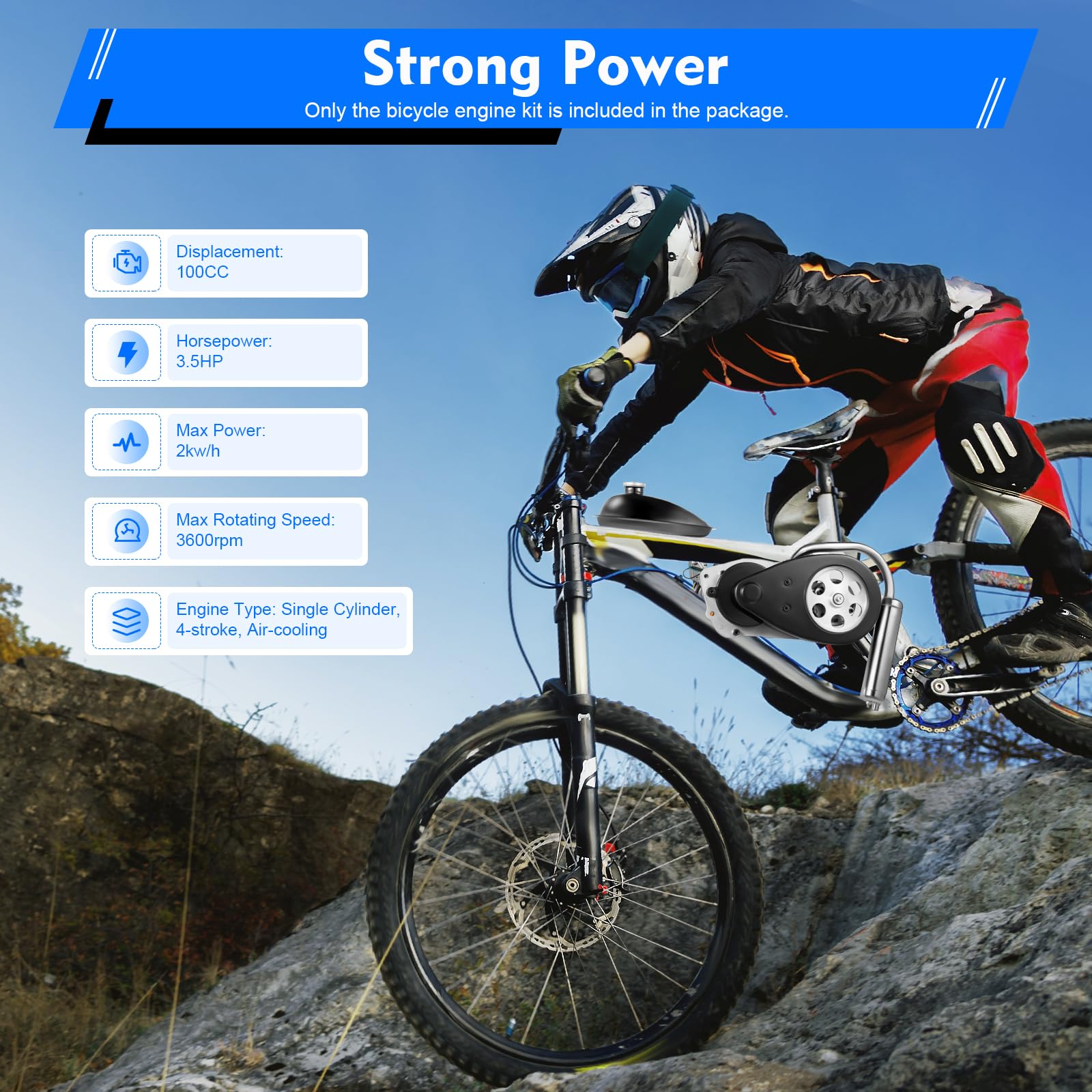

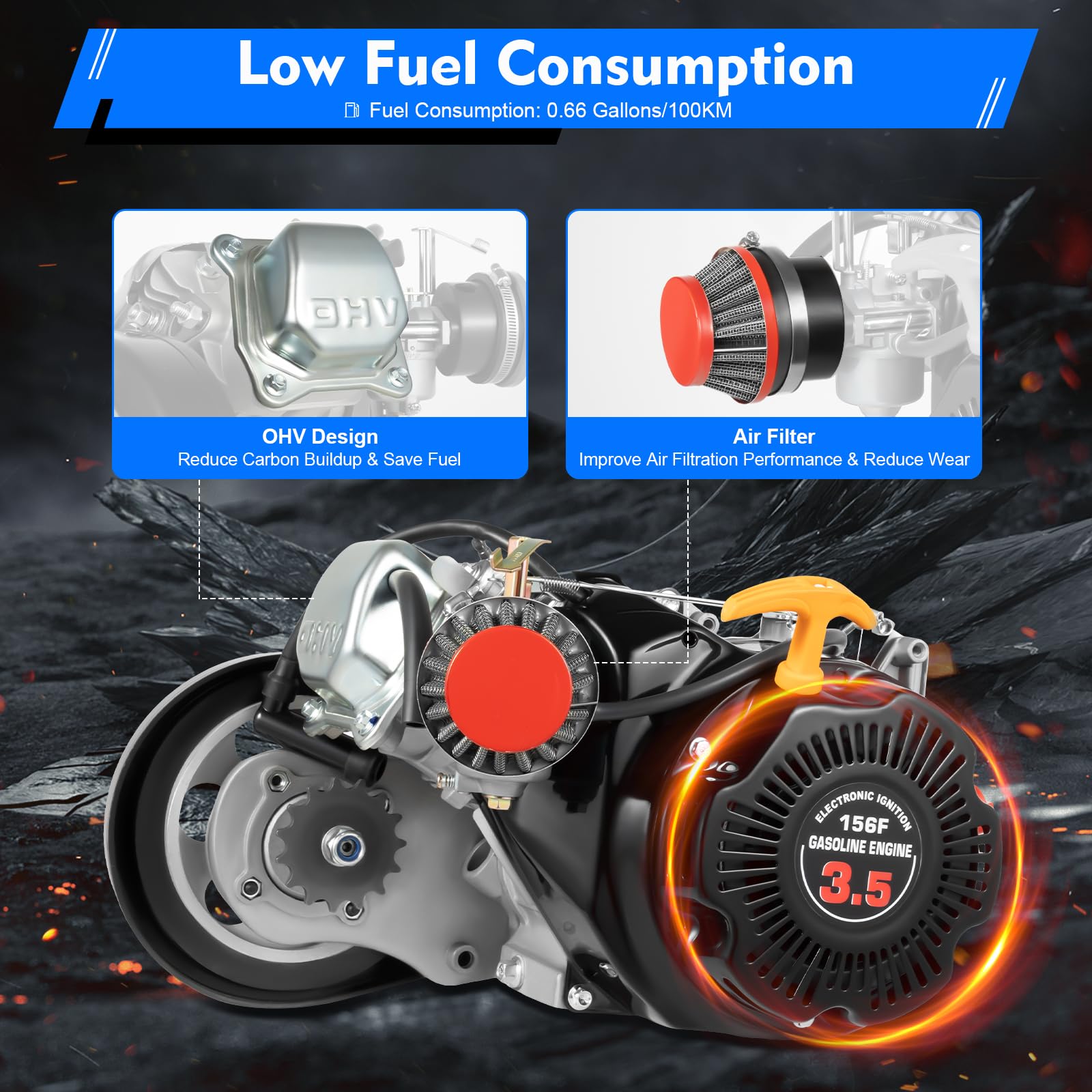

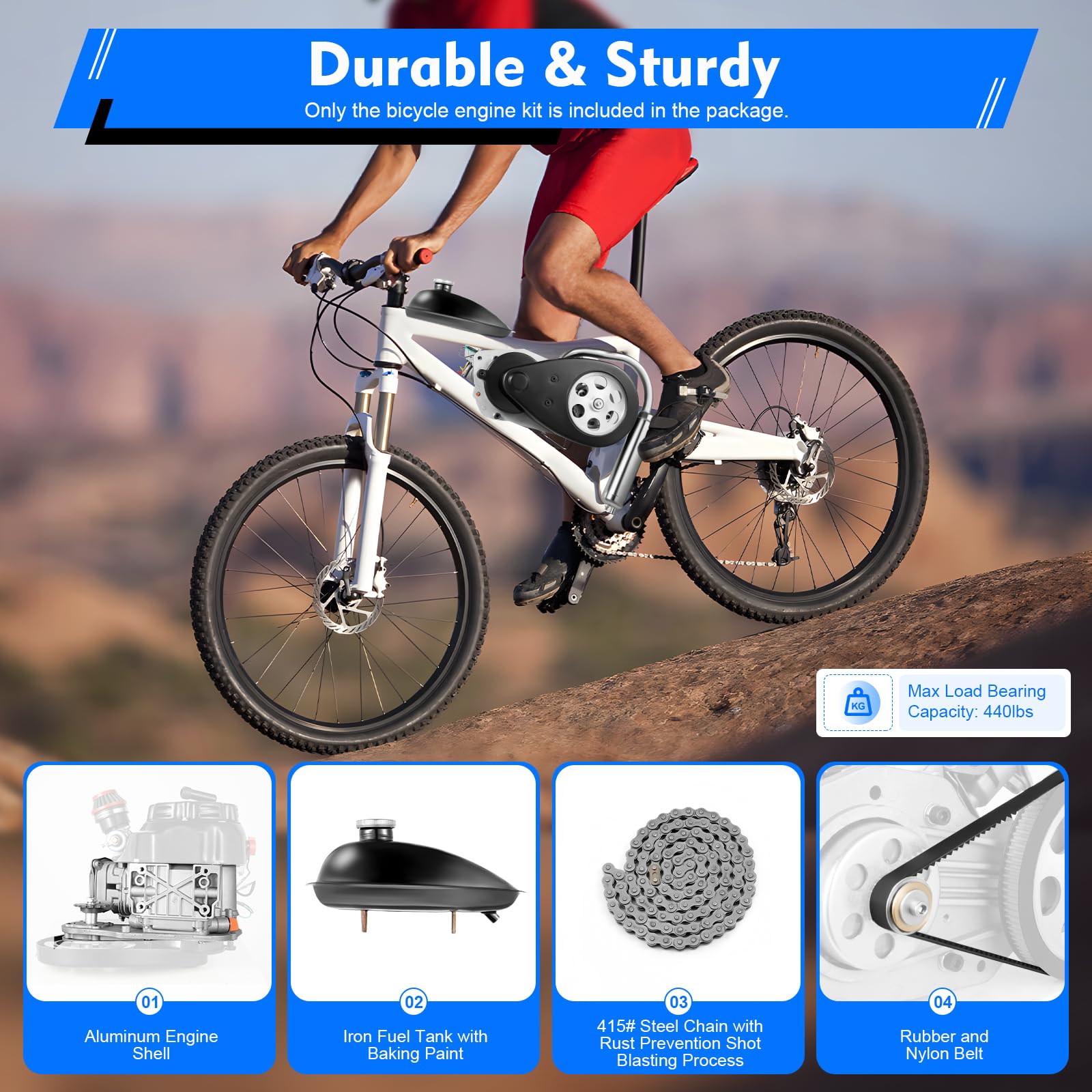

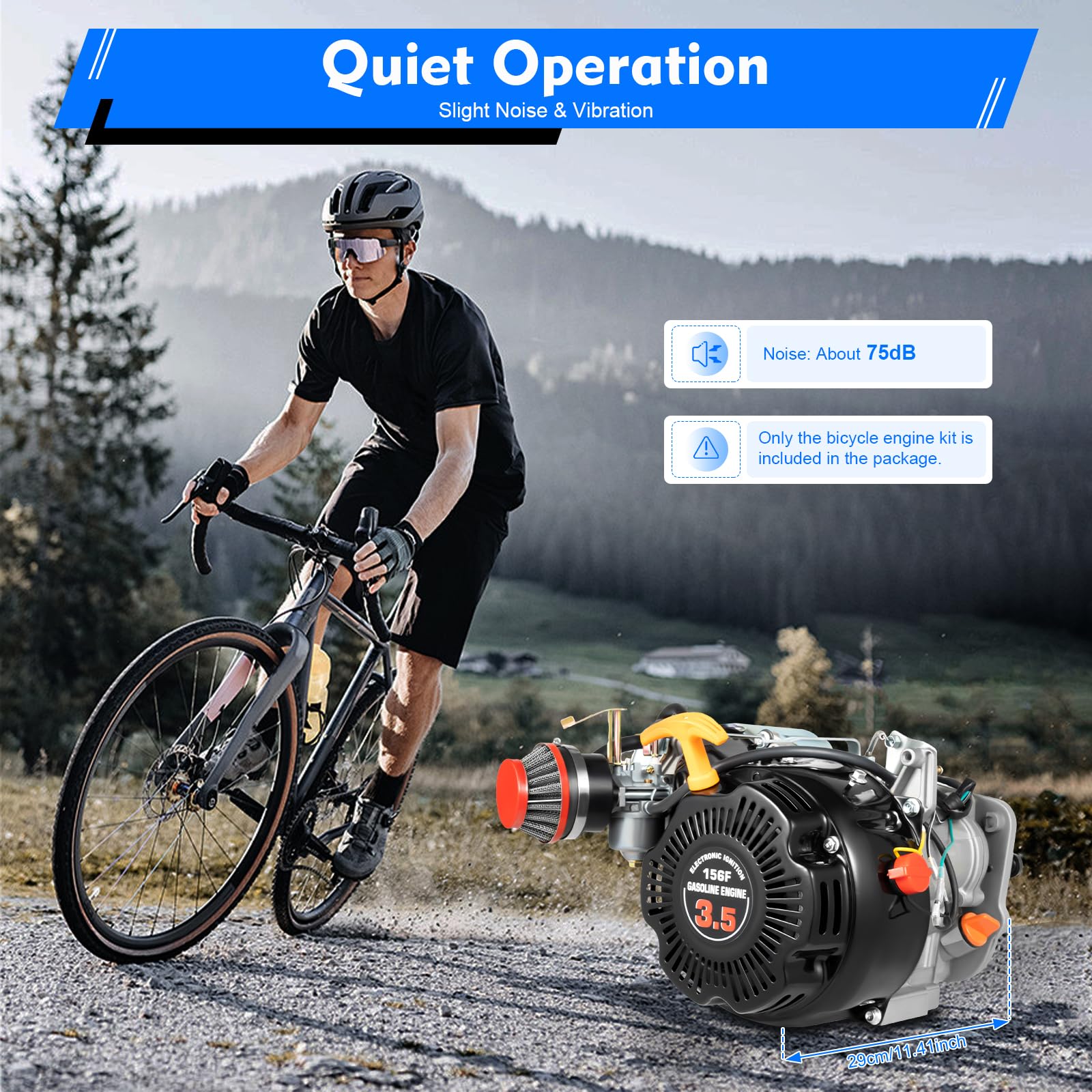

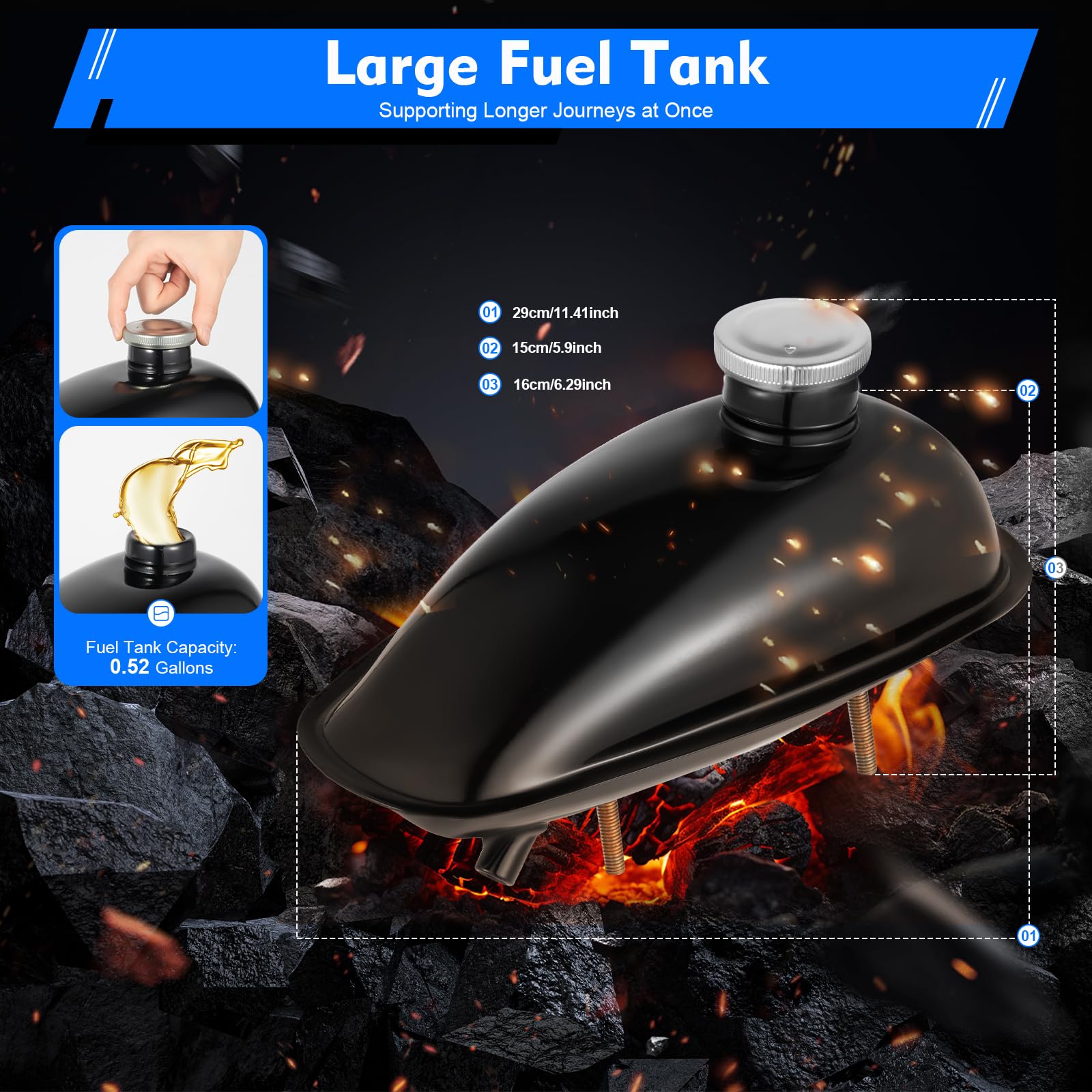

Type: Single Cylinder, 4-stroke, Air-cooling Material: Aluminum, Iron, #415 Steel, Rubber, Nylon Surface Treatment: Baking Paint, Rust Prevention Shot Blasting Assembly Required: Yes Starter System: Hand Start Displacement: 100CC Number of Teeth: 44 Ignition Mode: CDI Max Torque: 4.5N-m Bore Stroke: 56*40mm/2.2*1.57inch Horsepower: 3.5HP Max Power: 2kw/h Max Rotating Speed: 3600rpm Max Speed: 50km/h Compression Ratio: 7:1 Fuel Tank Capacity: 2L/0.52 Gallons Fuel Consumption: 2.5L/0.66 Gallons/100KM Lubricant Capacity: 0.6L/0.15 Gallons Gasoline Type: 92#, 95# Max Load Bearing Capacity: 200kg/440lbs Noise： About 75 decibels Chain Cover: 40*7.5cm/15.74*2.95in Fuel Tank Size： 29*15*16cm/11.41*5.9*6.29in Gear Diameter： 18cm/7.08in Diameter of Bicycle Teeth Disc 18cm/7.08in Engine Size: 38*29*23.5cm/14.96*11.41*9.25in Package Size: 73.5*35*28cm/28.93*13.77*11.02in Package Included 1* Fuel Tank 1* 100cc 4-Stroke Gasoline Engine 1* Base Bracket 1* Exhaust Pipe 1* 44 Tooth Chain 1* Chain Tensioner 1* Chain 1* Chain Guard 2* Fixed Iron Pieces 1* Spark Plug Tool 1* Fuel Line 1*Fuel Tank Cap 1* Exhaust Cushion 1*Fuel Filter
Features
【Install Suggest】 If you are inexperienced or installing an engine kit for the first time, please read our Video, or if you have any questions contact us in time. The Installation needs Professional hardware skills and tools, and about 2-4 hours of installation and fine-tuning.

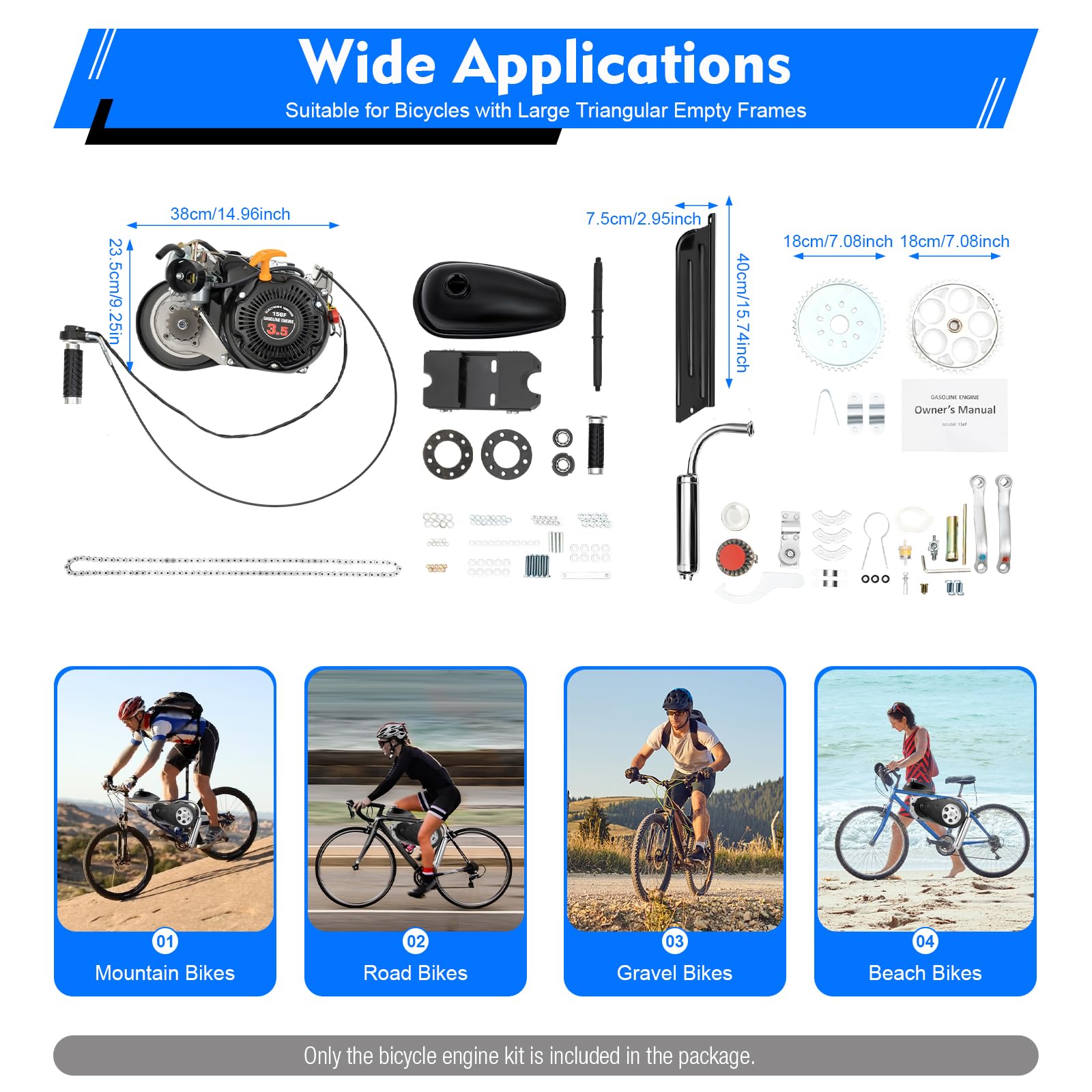

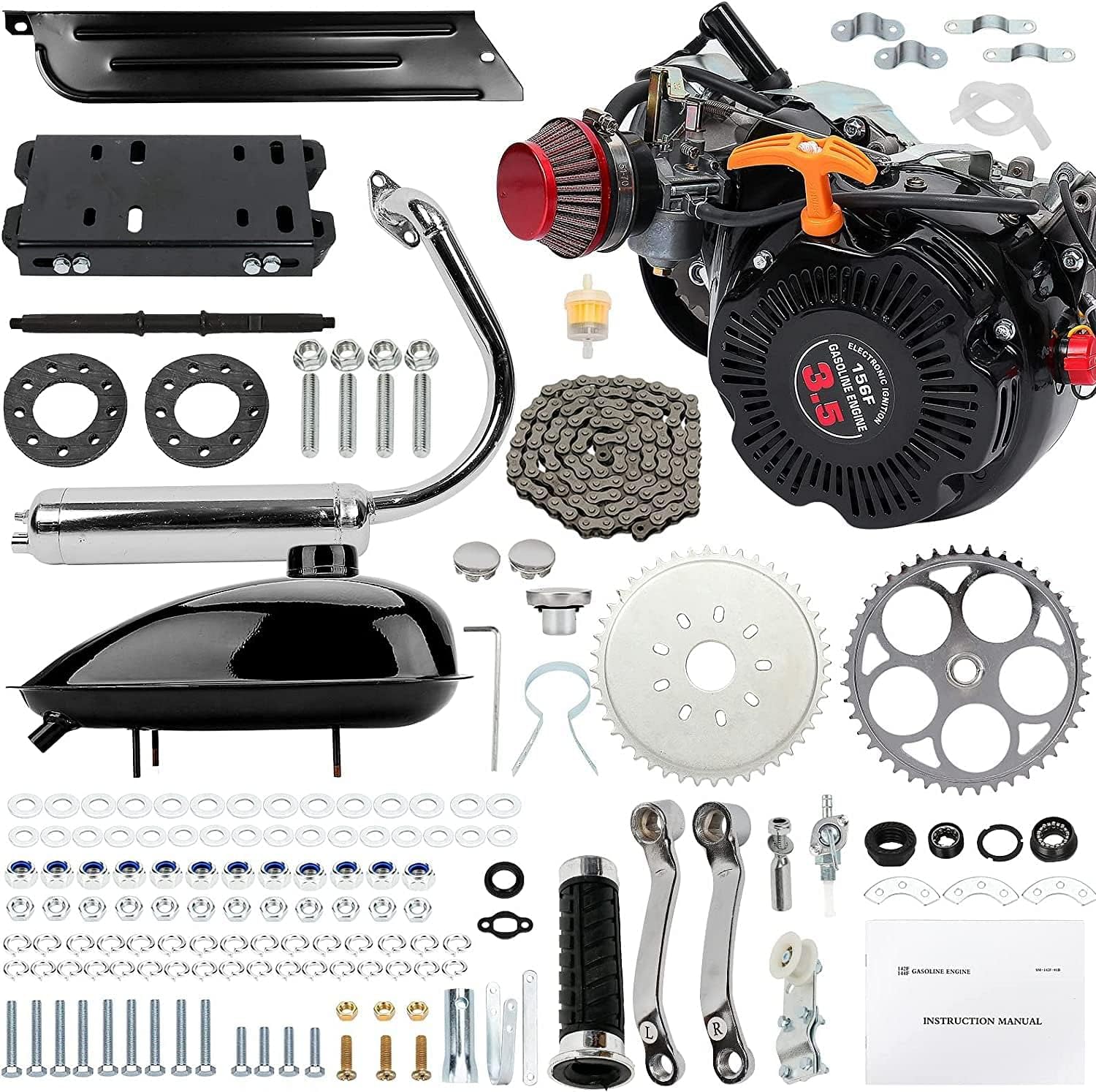

【100cc Bicycle Engine Kit】Come with 100cc 4-Stroke Gasoline Engine, Fuel Tank, Base Bracket, Exhaust Pipe, 44 Tooth Chain, Chain Tensioner, Chain Guard, 2* Fixed Iron Pieces, Spark Plug Tool, Fuel Line, Fuel Tank Cap, Exhaust Cushion, Fuel Filter, Fuel Valve, Chain Tension Adjusting Tool, English Manual.
【100cc 4 Stroke Bicycle Engine】It uses a 4-stroke engine, more stable, more reliable and quieter. Low noise level for a 4-stroke engine will not produce too much noise when riding and creates a good riding environment for you. This engine has a forced air-cooling system for providing good heat dissipation while working, extending its service life.
【Efficiency Riding】This kit converts your bike into a motorized bicycle, with max speed of 3600 rpm for great efficiency and convenience, allowing you to fully enjoy the fun of riding on your commute and short journeys. 100cc 4-stroke motorized bicycle engine kit fits for beach bikes with large triangular frame space.
【4 Stroke Bicycle Engine Kit】The bicycle motor kit are more stable, reliable and quieter than two-stroke engines. At the same time, the 56mm bore cylinders increase load carrying capacity and lower operating temperatures, making them easier to start while providing continuous output over a range of speeds.
